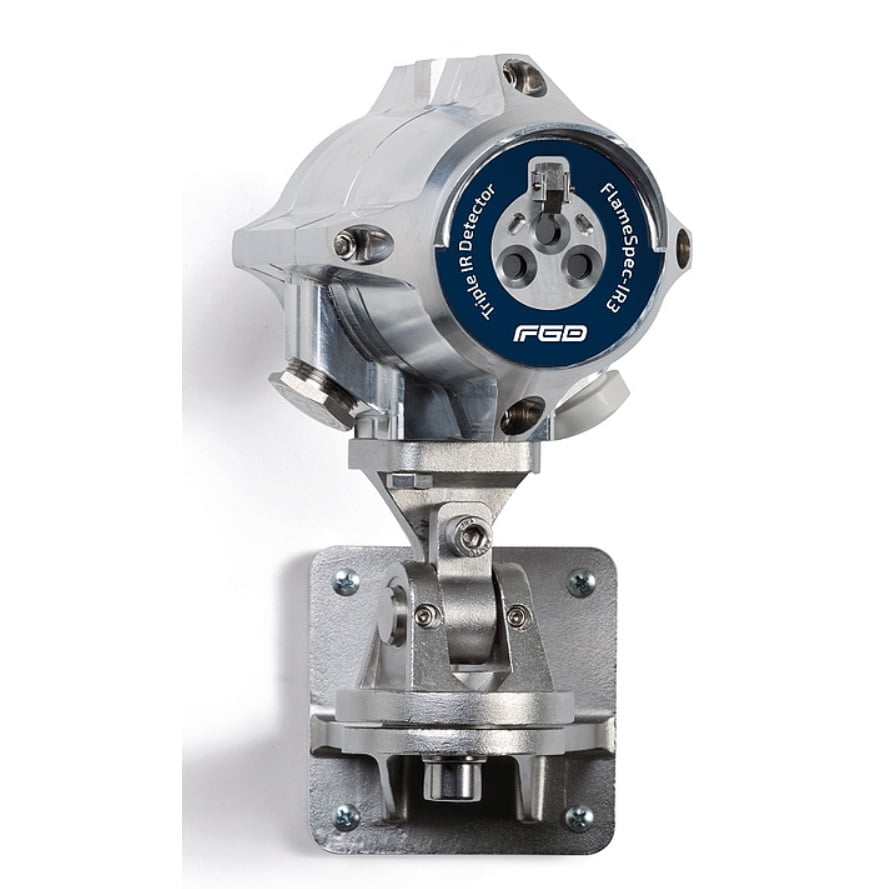

Triple IR Flame Detector – FlameSpec-IR3

Key Benefits

Extreme sensitivity – up to 260ft (80m) for a 1ft² (0.1m²) n-heptane pan fire.
Ultra-fast detection mode – detection within 40 milliseconds for fireballs or explosions.
1.3 second detection time – for 1ft² (0.1m²) n-heptane pan fire at up to 50 ft. (15m) distance.
Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory.
Built-in-Test (BIT) – Automatic and manual self-test of window cleanliness and the overall operation of the detector.
Window heater to avoid condensation and icing.
High immunity to false alarm

The FlameSpec-IR3 Triple IR (IR3) flame detector provides ultra-fast response, high performance and reliable detection of all types of hydrocarbon fires (visible and non-visible).

The detector addresses slow growing fires as well as fast eruption of fire using improved triple IR (IR3) technology. It operates in all weather and light conditions with highest immunity to false alarms.

Detection within 40 milliseconds of fireballs or explosions
Standard fire in only 1.3 second from 50 ft. (15m) and 3.7 seconds from 230 ft. (70m).

Add to that, the integral event recording, on top of the proven superior capabilities of Triple IR (IR3) flame detection and you have a very powerful safety tool to protect your personnel, plant and process.
