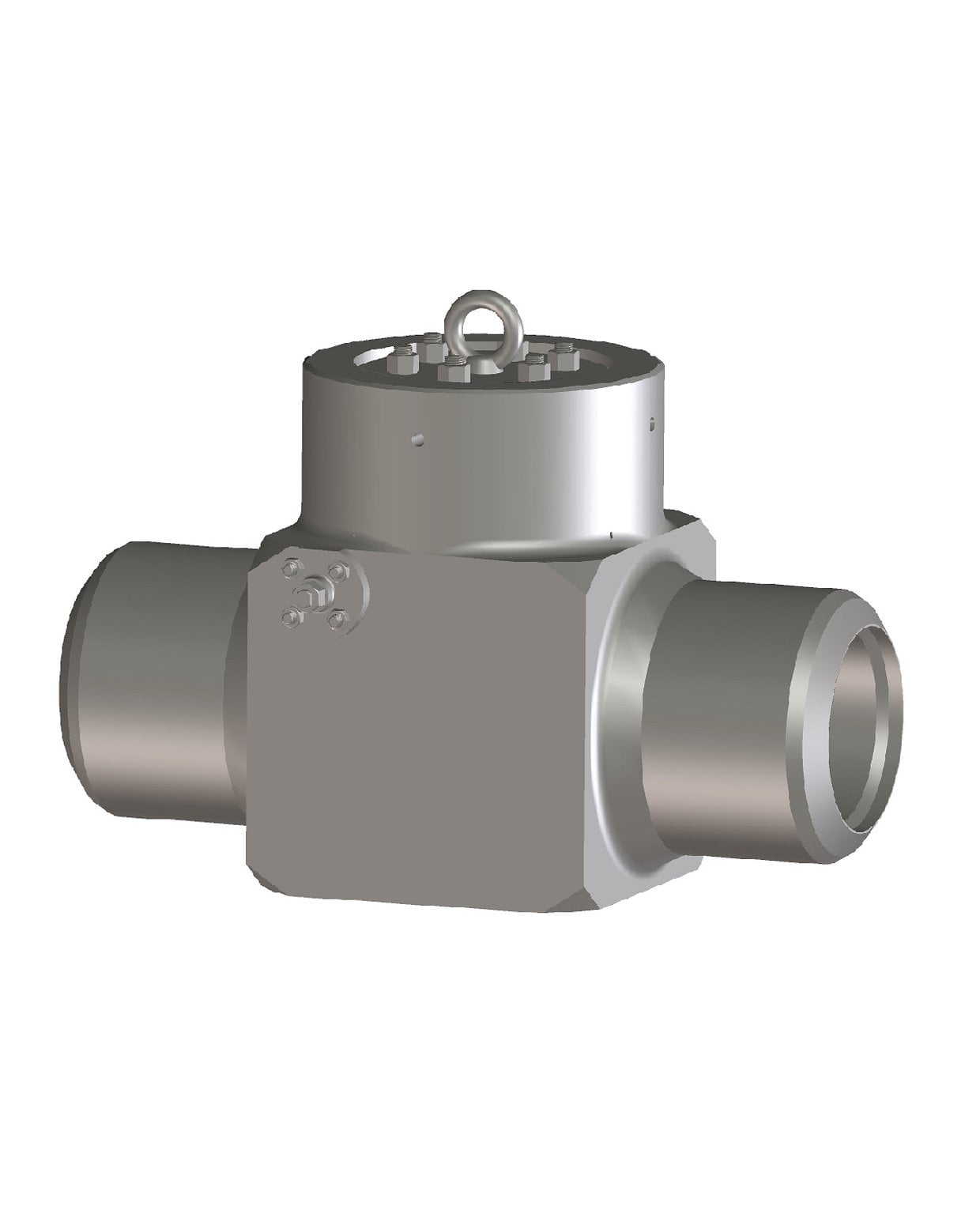

KDP-1500 Forged Steel Swing Check Valves, Pressure Seal Bonnet

Fig no. KDP – 1500
Pressure rating 1500 / 1500 lbs
PN 250
Size range 6 – 24
Body materials (S)A105N, (S)A182-F11, (S)A182-F22, (S)A182-F91, (S)A182-F92, 1.0460, 13CrMo4.5, 10CrMo9.10, 1.4903, 1.4901, 1.6368
End connections BW
Features Swing Check Valve, Pressure Seal Bonnet
Specification Download Spec
