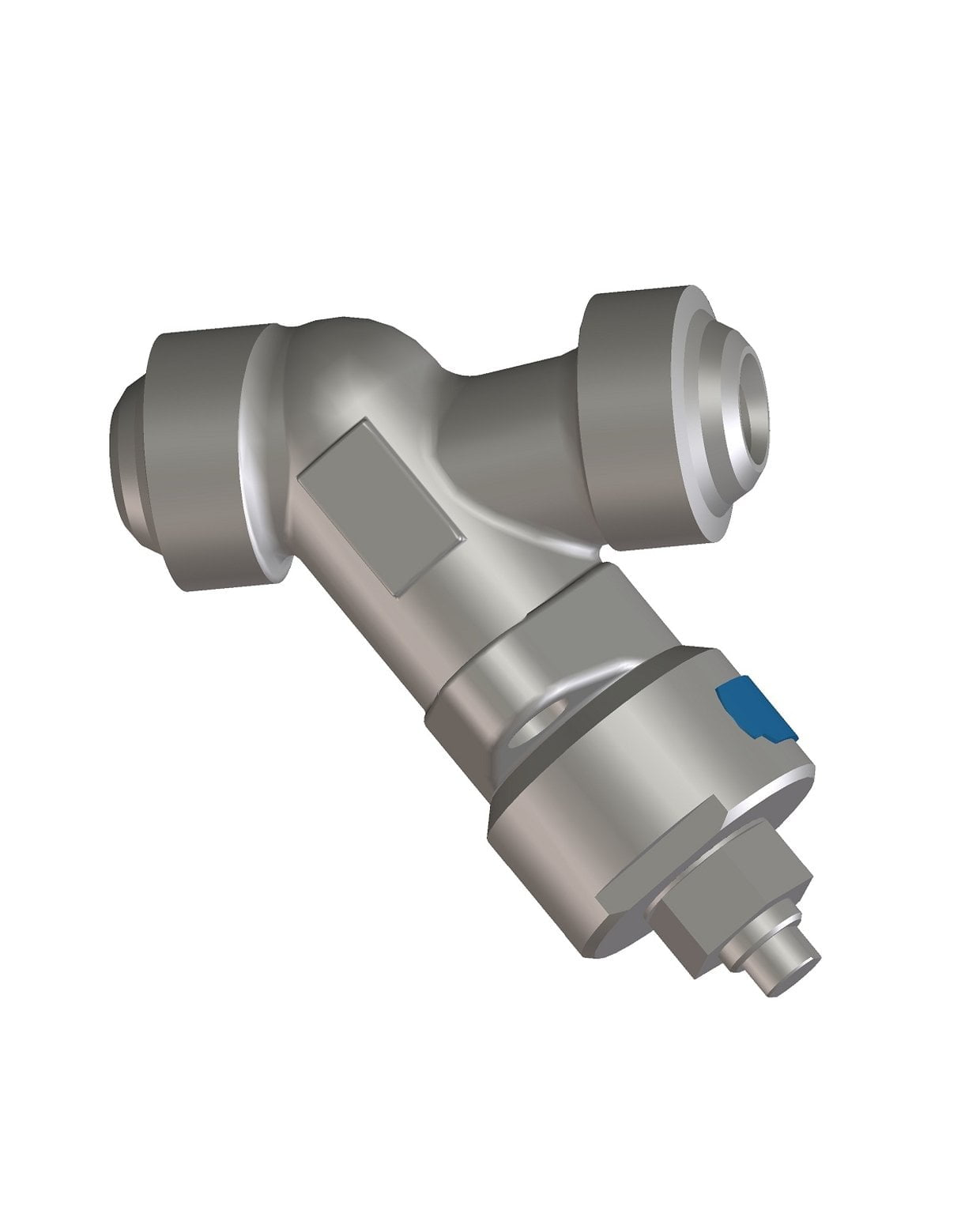

08.2 Forged Steel Y-Pattern Strainer, Pressure Seal Bonnet

Fig no. 08.2
Pressure rating 900 / 2700 (4500) lbs
PN 160 – PN 640
Size range 3/8 – 4
Body materials SA105N, SA182-F22, SA182-F91, SA182-F316(L), 1.0460, 10CrMo9.10, 1.4903, 1.4401
End connections SW, BW, NPT, Flanged
Features Pressure Seal Bonnet, Screwed Cap
Specification Download Spec
