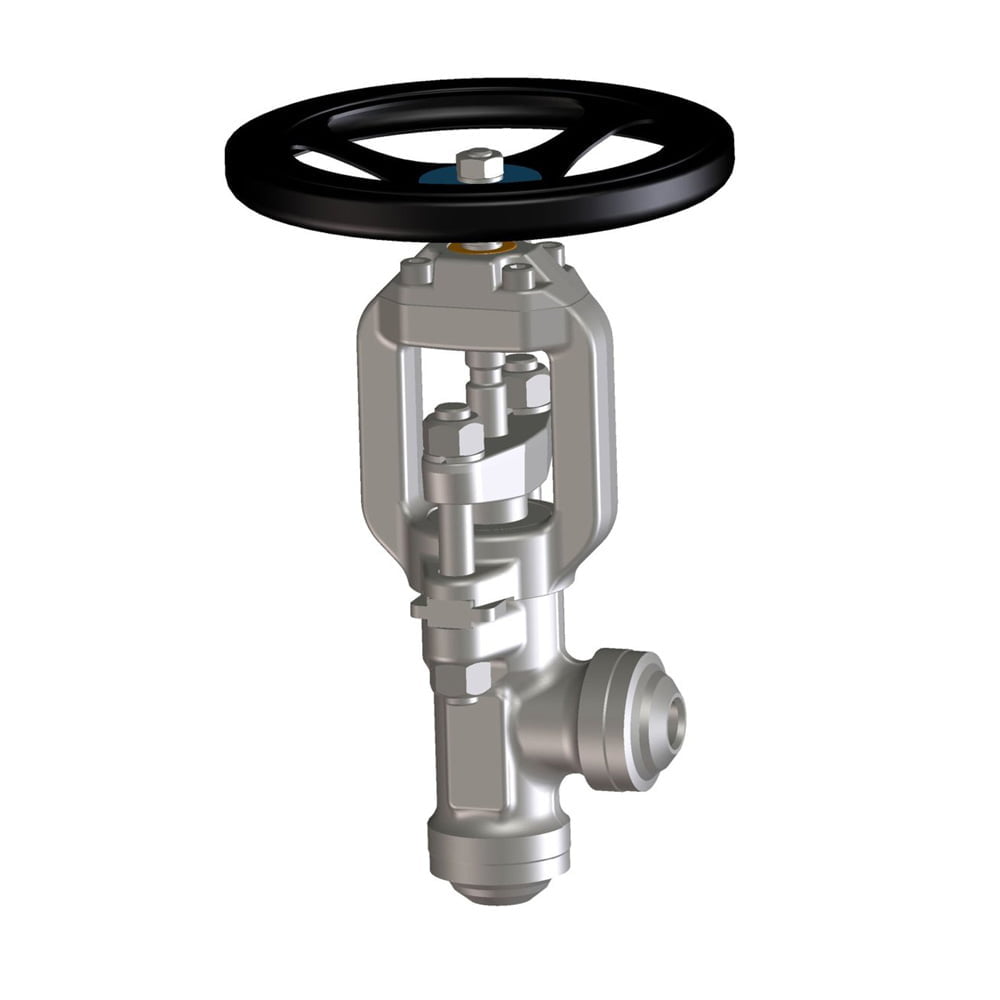

02.A Forged Steel Angle Type Throttle Type Globe Valves, Bonnetless

Fig no. 02.A
Pressure rating 1500 / 2500 lbs
PN 160 – PN 400
Size range 3/8 – 2
Body materials SA105N, SA182-F12, SA182-F22, SA182-F91, 1.0460, 13CrMo4.5, 11CrMo9.10, 1.4903
End connections SW, BW, NPT, Flanged
Features Integral Bonnet (Bonnetless), Floating Backseat, Bayonet Body/Yoke-Connection
Specification Download Spec
